CP-VNC-V41L1C-VMD

Compare

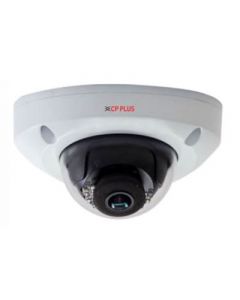

4 MP WDR IR Vandal Dome Camera – 15Mtr.
1/3” 4Megapixel PS CMOS Image Sensor (0.84667cm)
Max: 20 fps@4MP(2592×1520)
Ultra H.265, H.265, H.264, MJPEG Triple-stream encoding
WDR(120dB), Day/Night (ICR), 2D/3D-DNR, Digital Defog, Corridor Mode, ROI, AWB, AGC, BLC
2.8mm Lens ( 3.6mm Optional)
IR Range of 15 Mtrs, Micro SD Card, IP67, PoE, IK10
Supports Instastream technology, save diskspace and bandwidth upto 70%
Mobile Software: Android, iOS
CMS Software: IVMS

Description

Image Sensor	1/3″ 4MP PS CMOS Image Sensor (0.84667cm)
Minimum Illumination	Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR
BodyType	Vandal Dome
Shutter Speed	Auto/Manual, 1~1/100000 s
White Balance	Auto/Manual
Lens	2.8mm Lens ( 3.6mm Optional)
AGC Control	Auto/Manual
Video Compression	Ultra H.265, H.265, H.264, MJPEG
S/N Ratio	>55dB
Back Light Comp.	Auto / WDR (120dB)
Frame Rate	Main Stream: 4MP (2592×1520), Max 20fps; 4MP (2560×1440), Max 25fps; 3MP (2048×1520), Max 30fps; Sub Stream: 2MP (1920×1080), Max 30fps; Third Stream: D1 (720×576), Max 30fps
Video Streaming	Triple
Resolution	2592 × 1520
ICR	IR-cut filter with auto switch (ICR)
ROI	Up to 8 areas
Audio Input	impedance 35 kO; amplitude 2 V [p-p]
Audio Output	impedance 600 O; amplitude 2 V [p-p]
Audio Connector	Built-in Mic
Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
IR	IR Range of 15 Mtr.
Micro SD	Micro SD, Up to 256GB
Operating Temperature	-35°C ~ 60°C (-31°F ~ 140°F)
Humidity	<95% RH(non-condensing)
Power Source	12 V DC ±25%, or PoE (IEEE802.3 af)
Power Consumption	4.5W
Weatherproof Standard	IP67 & IK10
Dimension	Φ110 x 61 mm (Ø4.3” x 2.4”)
Weight	0.25 kg
