Description
| Conductor | Solid Bare Electrolytic Grade Copper |
| Nominal Conductor Diameter | 24 AWG |
| Insulation | Polyethylene (HDPE) |

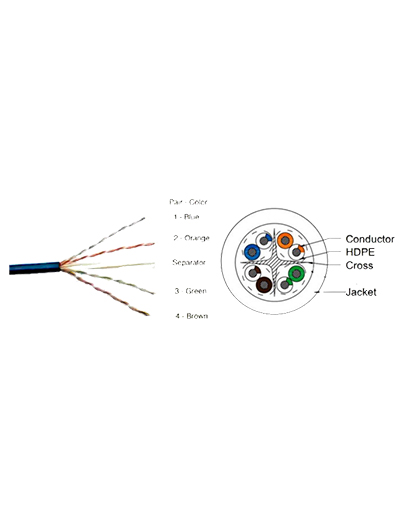

| Separator | Each pair separated with a cross separator |
| Pairing | 2 insulated conductors twisted together |
| Separator Material | Polyethylene (HDPE) |
| Outer Sheath | FR PVC |
| Colour of Sheath | Grey |
| Approximate OD | 5.8mm ± 0.1mm |
| Sheath Thickness | .45mm ± .05mm |
| Rip Cord | Yes |
| Sequential Marking | Every Meter |
| Characteristic Impedance | 100 ±15Ω |
| Resistance Unbalance | 5% Max |
| Nominal Velocity of Propagation | 69% |
| Conductor Resistance | ≤9.38/100m |
| Capacitance Unbalance | 330pF/100m |
| Bending Radius | < 4 x Cable Diameter at -20° ±1°C |
| Delay Skew | <45nS |
| Mutual Capacitance | <5.6nf/100m |
| Packing | 305 Mtrs |
| Temperature Rating | -15 to 70°C |
| Storage Temperature | 0 to 50°C |
| Impedance | 100±15% Ω |
| Pulling Force | 11.5Kg |
